ACAR/ASTM-B524
ACAR/ASTM-B524
- Detail
- Parameters

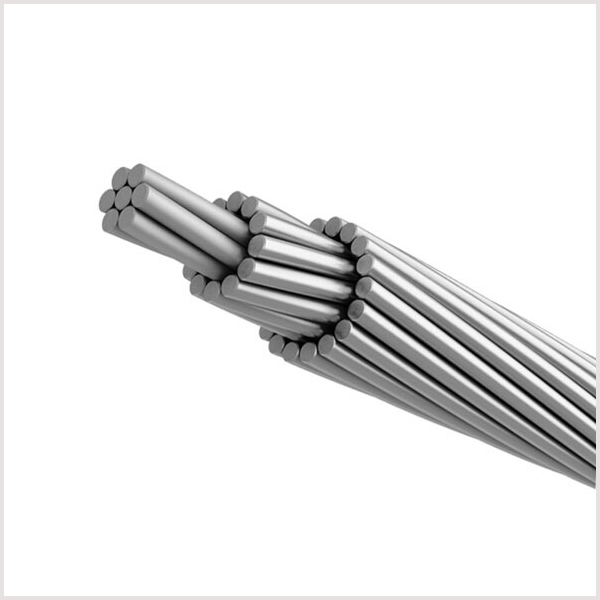

CONSTRUCTION:
Wires of Aluminum 1350-H19 is concentrically stranded on Aluminum Alloy 6201 core. The number of wires of each one depends on the cable design. In some cable constructions the wires of Aluminum Alloy 6201 can be distributed in layers throughout the Aluminum 1350-H19.
STANDARDS:
ASTM-B524
ADVANTAGES:
• more strength than AAC;
• higher current capability than ACSR or AAAC;
• lower weight than ACSR;
• higher corrosion resistance than ACSR.
Size | Area | 1350 | 6201 | Diameter | UTS | Mass | DC | Ampacity | ||
MCM or | mm2 | No. of Wire | Dia mm | No.of Wires | Dia mm | mm | Kn | Kg/Km | Ohm/Km | Amperes |
250 | 126.6 | 12 | 2.91 | 7 | 2.91 | 14.56 | 27.47 | 348.6 | 0.2395 | 567 |
250 | 126.6 | 15 | 2.91 | 4 | 2.91 | 14.56 | 24.29 | 348.9 | 0.2339 | 574 |
300 | 152.1 | 12 | 3.19 | 7 | 3.19 | 15.96 | 32.55 | 418.9 | 0.1993 | 639 |
300 | 152.1 | 15 | 3.19 | 4 | 3.19 | 15.96 | 28.63 | 419.3 | 0.1947 | 646 |
350 | 177.3 | 12 | 3.45 | 7 | 3.45 | 17.24 | 37.04 | 488.2 | 0.1710 | 705 |
350 | 177.3 | 15 | 3.45 | 4 | 3.45 | 17.24 | 32.86 | 488.6 | 0.1671 | 713 |
400 | 202.6 | 12 | 3.68 | 7 | 3.68 | 18.42 | 42.33 | 558.0 | 0.1496 | 769 |
400 | 202.6 | 15 | 3.68 | 4 | 3.68 | 18.42 | 37.55 | 558.5 | 0.1462 | 778 |
450 | 228.0 | 12 | 3.91 | 7 | 3.91 | 19.54 | 46.95 | 627.8 | 0.1330 | 830 |
450 | 228.0 | 15 | 3.91 | 4 | 3.91 | 19.54 | 41.41 | 628.4 | 0.1299 | 840 |
500 | 253.1 | 18 | 2.95 | 19 | 2.95 | 20.66 | 58.57 | 696.3 | 0.1225 | 880 |
500 | 253.1 | 24 | 2.95 | 13 | 2.95 | 20.66 | 52.64 | 696.9 | 0.1195 | 891 |
500 | 253.1 | 30 | 2.95 | 7 | 2.95 | 20.66 | 47.80 | 697.5 | 0.1167 | 901 |
500 | 253.1 | 33 | 2.95 | 4 | 2.95 | 20.66 | 44.18 | 697.9 | 0.1153 | 907 |
500 | 253.3 | 12 | 4.12 | 7 | 4.12 | 20.60 | 52.15 | 697.5 | 0.1197 | 889 |
500 | 253.3 | 15 | 4.12 | 4 | 4.12 | 20.60 | 46.01 | 698.0 | 0.1169 | 900 |
503.6 | 255.2 | 12 | 4.13 | 7 | 4.13 | 20.67 | 52.53 | 702.5 | 0.1188 | 893 |
503.6 | 255.2 | 15 | 4.13 | 4 | 4.13 | 20.67 | 46.34 | 703.2 | 0.1161 | 904 |
550 | 278.5 | 18 | 3.10 | 19 | 3.10 | 21.67 | 63.82 | 766.4 | 0.1113 | 936 |
550 | 278.5 | 24 | 3.10 | 13 | 3.10 | 21.67 | 57.10 | 767.0 | 0.1086 | 948 |
550 | 278.5 | 30 | 3.10 | 7 | 3.10 | 21.67 | 51.57 | 767.7 | 0.1060 | 959 |
550 | 278.5 | 33 | 3.10 | 4 | 3.10 | 21.67 | 47.49 | 768.0 | 0.1048 | 965 |
550 | 278.6 | 12 | 4.32 | 7 | 4.32 | 21.60 | 57.36 | 767.2 | 0.1088 | 946 |
550 | 278.6 | 15 | 4.32 | 4 | 4.32 | 21.60 | 50.60 | 767.9 | 0.1063 | 957 |
587.2 | 297.5 | 12 | 4.46 | 7 | 4.46 | 22.32 | 61.25 | 819.1 | 0.1019 | 987 |
587.2 | 297.5 | 15 | 4.46 | 4 | 4.46 | 22.32 | 54.03 | 819.8 | 0.0996 | 998 |
600 | 303.7 | 18 | 3.23 | 19 | 3.23 | 22.63 | 69.59 | 835.7 | 0.1021 | 990 |
600 | 303.7 | 24 | 3.23 | 13 | 3.23 | 22.63 | 62.26 | 836.4 | 0.0996 | 1003 |
600 | 303.7 | 30 | 3.23 | 7 | 3.23 | 22.63 | 56.23 | 837.2 | 0.0972 | 1015 |
600 | 303.7 | 33 | 3.23 | 4 | 3.23 | 22.63 | 51.79 | 837.5 | 0.0961 | 1021 |
600 | 303.9 | 12 | 4.51 | 7 | 4.51 | 22.56 | 62.57 | 836.8 | 0.0998 | 1001 |
600 | 303.9 | 15 | 4.51 | 4 | 4.51 | 22.56 | 55.20 | 837.60 | 0.0975 | 1012 |
649.5 | 329.0 | 18 | 3.36 | 19 | 3.36 | 23.56 | 73.15 | 905.3 | 0.0942 | 1044 |
649.5 | 329.0 | 24 | 3.36 | 13 | 3.36 | 23.56 | 65.92 | 906.1 | 0.0919 | 1056 |
649.5 | 329.0 | 30 | 3.36 | 7 | 3.36 | 23.56 | 60.06 | 906.9 | 0.0897 | 1069 |
649.5 | 329.0 | 33 | 3.36 | 4 | 3.36 | 23.56 | 55.62 | 907.3 | 0.0887 | 1075 |
653.1 | 330.9 | 12 | 4.71 | 7 | 4.71 | 23.54 | 68.13 | 911.1 | 0.0916 | 1058 |
653.1 | 330.9 | 15 | 4.71 | 4 | 4.71 | 23.54 | 60.1 | 911.9 | 0.0895 | 1070 |
700 | 354.6 | 18 | 3.49 | 19 | 3.49 | 24.45 | 78.82 | 975.5 | 0.0874 | 1096 |
700 | 354.5 | 24 | 3.49 | 13 | 3.49 | 24.45 | 71.03 | 976.7 | 0.0853 | 1109 |
700 | 354.5 | 30 | 3.49 | 7 | 3.49 | 24.45 | 64.72 | 977.3 | 0.0833 | 1122 |
700 | 354.3 | 33 | 3.49 | 4 | 3.49 | 24.45 | 59.93 | 977.7 | 0.0823 | 1129 |
739.8 | 374.9 | 18 | 3.59 | 19 | 3.59 | 25.14 | 83.35 | 1031.6 | 0.0827 | 1136 |
739.8 | 374.9 | 24 | 3.59 | 13 | 3.59 | 25.14 | 75.12 | 1032.5 | 0.0807 | 1150 |
739.8 | 374.9 | 30 | 3.59 | 7 | 3.59 | 25.14 | 68.44 | 1033.4 | 0.0788 | 1164 |
739.8 | 374.9 | 33 | 3.59 | 4 | 3.59 | 25.14 | 63.38 | 1033.9 | 0.0778 | 1171 |
750 | 380.2 | 18 | 3.62 | 19 | 3.61 | 25.32 | 84.52 | 1046.0 | 0.0815 | 1147 |
750 | 380.2 | 24 | 3.62 | 13 | 3.62 | 25.32 | 76.16 | 1046.9 | 0.0796 | 1160 |
750 | 380.2 | 30 | 3.62 | 7 | 3.62 | 25.32 | 69.40 | 1047.9 | 0.0777 | 1174 |
750 | 380.2 | 33 | 3.62 | 4 | 3.62 | 25.32 | 64.26 | 1048.4 | 0.0768 | 1181 |
800 | 405.2 | 18 | 3.73 | 19 | 3.73 | 26.14 | 90.07 | 1114.7 | 0.0765 | 1195 |
800 | 405.2 | 24 | 3.73 | 13 | 3.73 | 26.14 | 81.17 | 1115.7 | 0.0747 | 1209 |
800 | 405.2 | 30 | 3.73 | 7 | 3.73 | 26.14 | 73.96 | 1116.7 | 0.0729 | 1224 |
800 | 405.2 | 33 | 3.73 | 4 | 3.73 | 26.14 | 68.49 | 1117.3 | 0.0720 | 1232 |
850 | 431.0 | 18 | 3.85 | 19 | 3.85 | 26.96 | 94.8 | 1185.7 | 0.0719 | 1244 |
850 | 431.0 | 24 | 3.85 | 13 | 3.85 | 26.96 | 85.04 | 1186.8 | 0.0702 | 1259 |
850 | 431.0 | 30 | 3.85 | 7 | 3.85 | 26.96 | 77.04 | 1187.8 | 0.0685 | 1275 |
850 | 431.0 | 33 | 3.85 | 4 | 3.85 | 26.96 | 71.10 | 1188.3 | 0.0677 | 1282 |
900 | 456.2 | 18 | 3.96 | 19 | 3.96 | 27.73 | 100.34 | 1255.0 | 0.0680 | 1291 |
900 | 456.2 | 24 | 3.96 | 13 | 3.96 | 27.73 | 90.01 | 1256.1 | 0.0663 | 1307 |
900 | 456.2 | 30 | 3.96 | 7 | 3.96 | 27.73 | 81.55 | 1257.3 | 0.0647 | 1323 |
900 | 456.2 | 33 | 3.96 | 4 | 3.96 | 27.73 | 75.25 | 1257.8 | 0.0640 | 1330 |
927.2 | 469.8 | 18 | 4.02 | 19 | 4.02 | 28.15 | 103.35 | 1292.7 | 0.0660 | 1316 |
927.2 | 469.8 | 24 | 4.02 | 13 | 4.02 | 28.15 | 92.71 | 1293.8 | 0.0644 | 1332 |
927.2 | 469.8 | 30 | 4.02 | 7 | 4.02 | 28.15 | 83.99 | 1295.0 | 0.0628 | 1349 |
927.2 | 469.8 | 33 | 4.02 | 4 | 4.02 | 28.15 | 77.51 | 1295.6 | 0.0621 | 1357 |
950 | 481.1 | 18 | 4.07 | 19 | 4.07 | 28.48 | 105.84 | 1323.7 | 0.0644 | 1337 |
950 | 481.1 | 24 | 4.07 | 13 | 4.07 | 28.48 | 94.94 | 1324.9 | 0.0629 | 1353 |
950 | 481.1 | 30 | 4.07 | 7 | 4.07 | 28.48 | 86.01 | 1326.2 | 0.0614 | 1369 |
950 | 481.1 | 33 | 4.07 | 4 | 4.07 | 28.48 | 79.37 | 1326.7 | 0.0607 | 1377 |
1000 | 506.4 | 33 | 3.25 | 28 | 3.25 | 29.26 | 106.6 | 1393.5 | 0.0607 | 1389 |
1000 | 506.4 | 42 | 3.25 | 19 | 3.25 | 29.26 | 99.01 | 1394.7 | 0.0594 | 1404 |
1000 | 506.4 | 48 | 3.25 | 13 | 3.25 | 29.26 | 91.67 | 1395.4 | 0.0585 | 1414 |
1000 | 506.4 | 54 | 3.25 | 7 | 3.25 | 29.26 | 86.04 | 1396.2 | 0.0577 | 1424 |
1000 | 506.8 | 18 | 4.18 | 19 | 4.18 | 29.23 | 111.47 | 1394.2 | 0.0612 | 1382 |
1000 | 506.8 | 24 | 4.18 | 13 | 4.18 | 29.23 | 100.00 | 1395.6 | 0.0597 | 1400 |
1000 | 506.8 | 30 | 4.18 | 7 | 4.18 | 29.23 | 90.60 | 1396.8 | 0.0583 | 1416 |
1000 | 506.8 | 33 | 4.18 | 4 | 4.18 | 29.23 | 83.61 | 1397.4 | 0.0576 | 1425 |
1024.5 | 519.2 | 18 | 4.23 | 19 | 4.23 | 29.59 | 114.22 | 1428.5 | 0.0597 | 1405 |
1024.5 | 519.2 | 24 | 4.23 | 13 | 4.23 | 29.59 | 102.45 | 1429.8 | 0.0583 | 1422 |
1024.5 | 519.2 | 30 | 4.23 | 7 | 4.23 | 29.59 | 92.82 | 1431.1 | 0.0569 | 1439 |
1024.5 | 519.2 | 33 | 4.23 | 4 | 4.23 | 29.59 | 85.66 | 1431.7 | 0.0562 | 1448 |
1080.6 | 547.6 | 18 | 4.34 | 19 | 4.34 | 30.39 | 120.46 | 1506.6 | 0.0566 | 1455 |
1080.6 | 547.6 | 24 | 4.34 | 13 | 4.34 | 30.39 | 108.05 | 1508.0 | 0.0552 | 1473 |
1080.6 | 547.6 | 30 | 4.34 | 7 | 4.34 | 30.39 | 97.90 | 1509.4 | 0.0539 | 1491 |
1080.6 | 547.6 | 33 | 4.34 | 4 | 4.34 | 30.39 | 90.34 | 1510.0 | 0.0533 | 1499 |
1100 | 557.4 | 33 | 3.41 | 28 | 3.41 | 30.70 | 117.35 | 1534.1 | 0.0551 | 1479 |
1100 | 557.4 | 42 | 3.41 | 19 | 3.41 | 30.70 | 109.00 | 1535.3 | 0.0539 | 1495 |
1100 | 557.4 | 48 | 3.41 | 13 | 3.41 | 30.70 | 100.92 | 1536.1 | 0.0532 | 1505 |
1100 | 557.4 | 54 | 3.41 | 7 | 3.41 | 30.70 | 94.71 | 1537.0 | 0.0524 | 1517 |
1100 | 557.2 | 18 | 4.38 | 19 | 4.38 | 30.65 | 122.58 | 1533.1 | 0.0556 | 1472 |
1100 | 557.2 | 24 | 4.38 | 13 | 4.38 | 30.65 | 109.95 | 1534.5 | 0.0543 | 1489 |
1100 | 557.2 | 30 | 4.38 | 7 | 4.38 | 30.65 | 99.62 | 1535.9 | 0.0530 | 1507 |
1100 | 557.2 | 33 | 4.38 | 4 | 4.38 | 30.65 | 91.93 | 1536.6 | 0.0524 | 1516 |
1172 | 594.0 | 18 | 4.52 | 19 | 4.52 | 31.65 | 130.66 | 1634.2 | 0.0522 | 1534 |
1172 | 594.0 | 24 | 4.52 | 13 | 4.52 | 31.65 | 117.20 | 1635.6 | 0.0509 | 1553 |
1172 | 594.0 | 30 | 4.52 | 7 | 4.52 | 31.65 | 106.18 | 1637.1 | 0.0497 | 1572 |
1172 | 594.0 | 33 | 4.52 | 4 | 4.52 | 31.65 | 97.99 | 1637.8 | 0.0491 | 1582 |
1200 | 615.4 | 33 | 3.58 | 28 | 3.58 | 32.26 | 129.56 | 1693.7 | 0.0500 | 1577 |
1200 | 615.4 | 42 | 3.58 | 19 | 3.58 | 32.26 | 120.34 | 1695.0 | 0.0489 | 1594 |
1200 | 615.4 | 48 | 3.58 | 13 | 3.58 | 32.26 | 111.41 | 1695.9 | 0.0482 | 1606 |
1200 | 615.4 | 54 | 3.58 | 7 | 3.58 | 32.26 | 104.57 | 1696.9 | 0.0475 | 1618 |
1250 | 633.0 | 33 | 3.63 | 28 | 3.63 | 32.71 | 133.27 | 1742.2 | 0.0486 | 1606 |
1250 | 633.0 | 42 | 3.63 | 19 | 3.63 | 32.71 | 123.79 | 1743.6 | 0.0475 | 1624 |
1250 | 633.0 | 48 | 3.63 | 13 | 3.63 | 32.71 | 114.61 | 1744.6 | 0.0468 | 1637 |
1250 | 633.0 | 54 | 3.63 | 7 | 3.63 | 32.71 | 107.56 | 1745.5 | 0.0461 | 1649 |
1300 | 658.7 | 33 | 3.71 | 28 | 3.71 | 33.37 | 138.68 | 1812.8 | 0.0467 | 1648 |
1300 | 658.7 | 42 | 3.71 | 19 | 3.71 | 33.37 | 128.8 | 1814.3 | 0.0456 | 1668 |
1300 | 658.7 | 48 | 3.71 | 13 | 3.71 | 33.37 | 119.26 | 1815.4 | 0.0450 | 1679 |
1300 | 658.7 | 54 | 3.71 | 7 | 3.71 | 33.37 | 111.93 | 1816.3 | 0.0443 | 1693 |
1361.5 | 690 | 33 | 3.79 | 28 | 3.79 | 34.16 | 143.53 | 1898.9 | 0.0446 | 1699 |
1361.5 | 690 | 42 | 3.79 | 19 | 3.79 | 34.16 | 132.71 | 1900.5 | 0.0436 | 1718 |
1361.5 | 690 | 48 | 3.79 | 13 | 3.79 | 34.16 | 122.45 | 1901.5 | 0.0429 | 1732 |
1361.5 | 690 | 54 | 3.79 | 7 | 3.79 | 34.16 | 114.46 | 1902.6 | 0.0423 | 1745 |
1400 | 709.4 | 33 | 3.85 | 28 | 3.85 | 34.63 | 147.56 | 1952.4 | 0.0433 | 1752 |
1400 | 709.4 | 42 | 3.85 | 19 | 3.85 | 34.63 | 136.44 | 1954.0 | 0.0424 | 1750 |
1400 | 709.4 | 48 | 3.85 | 13 | 3.85 | 34.63 | 125.89 | 1955.0 | 0.0418 | 1762 |
1400 | 709.4 | 54 | 3.85 | 7 | 3.85 | 34.63 | 117.68 | 1956.1 | 0.0412 | 1775 |
1500 | 760.0 | 33 | 3.98 | 28 | 3.98 | 35.85 | 158.1 | 2091.7 | 0.0404 | 1812 |
1500 | 760.0 | 42 | 3.98 | 19 | 3.98 | 35.85 | 146.19 | 2093.5 | 0.0396 | 1830 |
1500 | 760.0 | 48 | 3.98 | 13 | 3.98 | 35.85 | 134.88 | 2094.5 | 0.0390 | 1844 |
1500 | 760.0 | 54 | 3.98 | 7 | 3.98 | 35.85 | 126.08 | 2095.7 | 0.0384 | 1859 |
1534.4 | 777.3 | 33 | 4.03 | 28 | 4.03 | 36.25 | 161.69 | 2139.3 | 0.0395 | 1839 |
1534.4 | 777.3 | 42 | 4.03 | 19 | 4.03 | 36.25 | 149.51 | 2141.0 | 0.0387 | 1858 |
1534.4 | 777.3 | 48 | 4.03 | 13 | 4.03 | 36.25 | 137.94 | 2142.1 | 0.0381 | 1872 |
1534.4 | 777.3 | 54 | 4.03 | 7 | 4.03 | 36.25 | 128.95 | 2143.3 | 0.0376 | 1885 |
1600 | 811.3 | 33 | 4.11 | 28 | 4.11 | 37.04 | 168.75 | 2232.6 | 0.0379 | 1890 |
1600 | 811.3 | 42 | 4.11 | 19 | 4.11 | 37.04 | 156.04 | 2234.5 | 0.0371 | 1910 |
1600 | 811.3 | 48 | 4.11 | 13 | 4.11 | 37.04 | 143.97 | 2235.7 | 0.0365 | 1926 |
1600 | 811.3 | 54 | 4.11 | 7 | 4.11 | 37.04 | 134.58 | 2236.9 | 0.0360 | 1939 |
1700 | 860.9 | 33 | 4.24 | 28 | 4.24 | 38.15 | 179.08 | 2369.2 | 0.0357 | 1965 |
1700 | 860.9 | 42 | 4.24 | 19 | 4.24 | 38.15 | 165.58 | 2371.1 | 0.0349 | 1988 |
1700 | 860.9 | 48 | 4.24 | 13 | 4.24 | 38.15 | 152.77 | 2372.5 | 0.0344 | 2002 |
1700 | 860.9 | 54 | 4.24 | 7 | 4.24 | 38.15 | 142.81 | 2373.8 | 0.0339 | 2017 |
1750 | 887.1 | 33 | 4.30 | 28 | 4.30 | 38.73 | 184.52 | 2441.3 | 0.0347 | 2003 |
1750 | 887.1 | 42 | 4.30 | 19 | 4.30 | 38.73 | 170.62 | 2443.3 | 0.0339 | 2026 |
1750 | 887.1 | 48 | 4.30 | 13 | 4.30 | 38.73 | 157.42 | 2444.6 | 0.0334 | 2041 |
1750 | 887.1 | 54 | 4.30 | 7 | 4.30 | 38.73 | 147.15 | 2446.0 | 0.0329 | 2057 |
1800 | 920.8 | 33 | 4.38 | 28 | 4.38 | 39.46 | 191.54 | 2534.1 | 0.0334 | 2053 |
1800 | 920.8 | 42 | 4.38 | 19 | 4.38 | 39.46 | 177.10 | 2536.1 | 0.0327 | 2075 |
1800 | 920.8 | 48 | 4.38 | 13 | 4.38 | 39.46 | 163.40 | 2537.5 | 0.0322 | 2091 |
1800 | 920.8 | 54 | 4.38 | 7 | 4.38 | 39.46 | 152.75 | 2538.9 | 0.0317 | 2108 |
1900 | 962.8 | 33 | 4.48 | 28 | 4.48 | 40.35 | 200.28 | 2649.8 | 0.0319 | 2116 |
1900 | 962.8 | 42 | 4.48 | 19 | 4.48 | 40.35 | 185.19 | 2652.0 | 0.0312 | 2139 |
1900 | 962.8 | 48 | 4.48 | 13 | 4.48 | 40.35 | 170.87 | 2653.4 | 0.0308 | 2153 |
1900 | 962.2 | 54 | 4.48 | 7 | 4.48 | 40.35 | 159.72 | 2654.9 | 0.0303 | 21711 |
