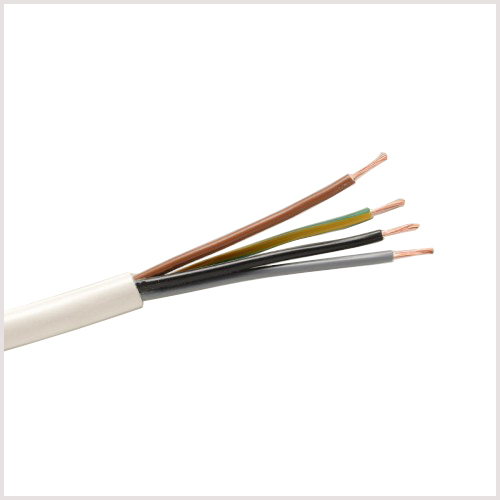

309Y/H07V2V2-F/90℃ PVC wire
309Y/H07V2V2-F/90℃ PVC wire
- Detail
- Parameters
309-Y / H05V2V2-F
BS EN 50525-2-11 Flexible Cable
APPLICATION
For internal wiring or supply cords to electrical apparatus,
particularly for use in high temperature zones such as lighting applications. Not suitable for outdoor use.
CONSTRUCTION
Conductor
Class 5 flexible copper conductor according to BS EN 60228 (previously BS 6360)
Insulation
PVC (Polyvinyl Chloride) Type TI3 according to BS EN 50363
Sheath
PVC (Polyvinyl Chloride) Type TM3 according to BS EN 50363
CABLE STANDARDS
BS EN 50525-2-11 (previously BS 6500, BS 7919 table 41),
BS EN/IEC 60332-1-2
CHARACTERISTICS
Voltage Rating (Uo/U) 300/500V
Temperature Rating
Flexed: 0°C to +90°C
Minimum Bending Radius Fixed: 6 x overall diameter Flexed: 10 x overall diameter
Core Identification
Sheath Colour
DIMENSIONS
UNIQUE PART NO. | NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL THICKNESS OF INSULATION | NOMINAL THICKNESS OF SHEATH | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
mm² | mm | mm | mm | kg/km | ||
UN90RVV2X0.75 | 2 | 0.75 | 0.6 | 0.8 | 6.3 | 63 |
UN90RVV3X0.75 | 3 | 0.75 | 0.6 | 0.8 | 6.7 | 74 |
UN90RVV3X1 | 3 | 1 | 0.6 | 0.8 | 7 | 86 |
UN90RVV3X1.5 | 3 | 1.5 | 0.7 | 0.9 | 8.1 | 115 |
UN90RVV3X2.5 | 3 | 2.5 | 0.8 | 1 | 9.7 | 170 |
UN90RVV4X0.75 | 4 | 0.75 | 0.6 | 0.8 | 7.3 | 78 |
UN90RVV4X1 | 4 | 1 | 0.6 | 0.9 | 7.9 | 110 |
UN90RVV4X1.5 | 4 | 1.5 | 0.7 | 1 | 9 | 140 |
UN90RVV4X2.5 | 4 | 2.5 | 0.8 | 1.1 | 10.8 | 210 |
UN90RVV5X0.75 | 5 | 0.75 | 0.6 | 0.9 | 8.1 | 105 |
CONDUCTORS
Class 5 Flexible Copper Conductors for Single Core and Multi-Core Cables
NOMINAL CROSS | MAXIMUM DIAMETER OF WIRES | MAXIMUM RESISTANCE OF CONDUCTOR | |
Plain Wires | Metal-Coated Wires | ||
0.75 | 0.21 | 26 | 26.7 |
1 | 0.21 | 19.5 | 20 |
1.5 | 0.26 | 13.3 | 13.7 |
2.5 | 0.26 | 7.98 | 8.21 |
ELECTRICAL CHARACTERISTICS
Current Carrying Capacity and Mass Supportable
NOMINAL CROSS | CURRENT CARRYING CAPACITY | MAXIMUM MASS SUPPORTABLE BY | |
Single-Phase AC | Three-Phase AC | ||
0.75 | 6 | 6 | 3 |
1 | 10 | 10 | 5 |
1.5 | 16 | 16 | 5 |
2.5 | 25 | 20 | 5 |
Voltage Drop
NOMINAL CROSS SECTIONAL AREA | DC OR SINGLE-PHASE AC | THREE-PHASE AC |
0.75 | 62 | 54 |
1 | 46 | 40 |
1.5 | 32 | 27 |
2.5 | 19 | 16 |
