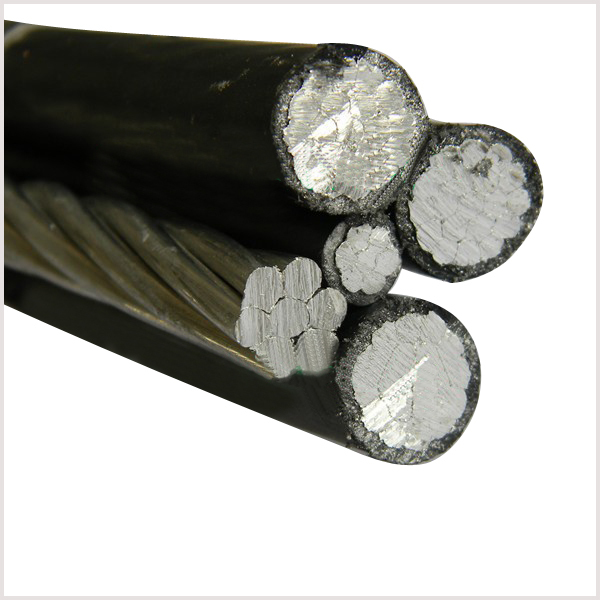

[NF C 33-209] Aerial Bundled Cables (ABC) with messenger neutral core
Application: Aerial bundled cables are mainly used for secondary overhead lines on poles or as feeders to residential premises
Engineering Specifications
Type: AL/XLPE
Standard: NF C 33-29
Nominal Voltage: 600/1000V Insulation Sheath :XLPE
Packing: The ABC cable are delivered on non-returnable wooden drums
ABC – 3xA mm² Al/XLPE + NxAmm² Al alloy/XLPE + KxAmm² Cu/XLPE
(A-Cross sectional area of conductor, N-Neutral (Al alloy), K-no of cores for public lighting)
Nominal Area of Conductor | No./ Stranding wire diameter (x/mm) | Insulation thickness (mm) | Conductor D.C. resistance (Ω/km) | Max. Breaking strength (daN) | ||||||||
Phase | Neutral | Street lighting | Phase | Neutral | Street lighting | Phase | Neutral | Street lighting | Phase | Neutral | Street lighting | |
3x25+N54.6+1x16 | 7/2.0 | 7/3.17 | 7/1.6 | 1.4 | 1.6 | 1.2 | 1.2 | 0.63 | 1.91 | 300 | 1660 | 190 |
3x35+N54.6+1x16 | 7/2.33 | 7/3.16 | 7/1.6 | 1.6 | 1.6 | 1.2 | 0.868 | 0.63 | 1.91 | 420 | 1660 | 190 |
3x50+N54.6+1x16 | 7/2.70 | 7/3.16 | 7/1.6 | 1.6 | 1.6 | 1.2 | 0.641 | 0.63 | 1.91 | 600 | 1660 | 190 |
3x70+N54.6+1x16 | 7/3.3 | 7/3.16 | 7/1.6 | 1.8 | 1.6 | 1.2 | 0.443 | 0.63 | 1.91 | 840 | 1660 | 190 |
3x70+N54.6+1x25 | 7/3.3 | 7/3.16 | 7/2.0 | 1.8 | 1.6 | 1.4 | 0.443 | 0.63 | 1.2 | 840 | 1660 | 300 |
3x70+N70+1x16 | 7/3.3 | 7/3.5 | 7/1.6 | 1.8 | 1.5 | 1.2 | 0.443 | 0.5 | 1.91 | 840 | 2050 | 190 |
3x95+N70+1x16 | 7/3.73 | 7/3.5 | 7/1.6 | 1.8 | 1.5 | 1.2 | 0.32 | 0.5 | 1.91 | 1140 | 2050 | 190 |
3x120+N70+1x16 | 7/4.06 | 7/3.5 | 7/1.6 | 1.8 | 1.5 | 1.2 | 0.253 | 0.5 | 1.91 | 1440 | 2050 | 190 |
3x120+N95+1x16 | 7/4.06 | 7/4.16 | 7/1.6 | 1.8 | 1.6 | 1.2 | 0.253 | 0.343 | 1.91 | 1440 | 2750 | 190 |
3x150+N70+1x16 | 7/4.7 | 7/3.5 | 7/1.6 | 1.7 | 1.5 | 1.2 | 0.206 | 0.5 | 1.91 | 1800 | 2050 | 190 |
3x150+N95+1x16 | 7/4.7 | 7/4.16 | 7/1.6 | 1.7 | 1.6 | 1.2 | 0.206 | 0.343 | 1.91 | 1800 | 2750 | 190 |
Nominal Area of | Current carrying capacity | Voltage drop | Inductance | Impedance | Min. Bending Radius | Approx. O.D. | Approx. Weight | |
Phase | street lighting | mV/A/m | mH/km | /km | mm | mm | kg/km | |
3x25+N54.6+1x16 | 112 | 83 | 2.2 | 0.28 | 0.501 | 229 | 30 | 580.7 |
3x35+N54.6+1x16 | 138 | 83 | 1.65 | 0.28 | 0.501 | 229 | 33 | 687.8 |
3x50+N54.6+1x16 | 168 | 83 | 1.27 | 0.27 | 0.5 | 229 | 36 | 801.6 |
3x70+N54.6+1x16 | 213 | 83 | 0.87 | 0.26 | 0.35 | 243 | 37.5 | 1042.3 |
3x70+N54.6+1x25 | 213 | 111 | 0.87 | 0.26 | 0.35 | 243 | 40 | 1077.3 |
3x70+N70+1x16 | 213 | 83 | 0.87 | 0.26 | 0.35 | 243 | 41 | 1079.9 |
3x95+N70+1x16 | 258 | 83 | 0.67 | 0.25 | 0.258 | 266 | 44 | 1262.8 |
3x120+N70+1x16 | 300 | 83 | 0.55 | 0.25 | 0.258 | 284 | 46 | 1417.1 |
3x120+N95+1x16 | 300 | 83 | 0.55 | 0.25 | 0.258 | 284 | 47 | 1480.3 |
3x150+N70+1x16 | 344 | 83 | 0.46 | 0.24 | 0.257 | 315 | 48 | 1727.5 |
3x150+N95+1x16 | 344 | 83 | 0.46 | 0.24 | 0.257 | 315 | 49 | 1790.7 |
