Duplex Conductor 600V Secondary           Type URD Cable-Aluminum Conductor

Code name

Phase Conductor

Neutral

cable diameter

Weight
Per 1000ft

Ampacity

Size

Stranding

Insulation
Thickness

Size

Stranding

Insulation
Thickness

single
phase

overall

Direct
Burial

In Duct

AWG

mils

AWG

mils

inches

Lbs

Amps

Bard

8

7/w

60

8

7/w

60

0.262

0.524

76

70

70

Claflin

6

7/w

60

6

7/w

60

0.299

0.596

91

95

70

Delgado

4

7/w

60

4

7/w

60

0.345

0.69

129

125

90

Everett

2

7/w

60

2

7/w

60

0.403

0.806

189

187

100

Triplex Conductor 600V Secondary              Type URD Cable-Aluminum Conductor

Code name

Phase Conductor

Neutral

cable diameter

Weight
Per 1000ft

Ampacity

Size

Stranding

Insulation
Thickness

Size

Stranding

Insulation
Thickness

single
phase

overall

Direct
Burial

In Duct

AWG

mils

AWG

mils

inches

Lbs

Amps

Erskine

6

7/w

60

6

7/w

60

0.299

0.646

143

95

70

Vassar

4

7/w

60

4

7/w

60

0.345

0.754

203

125

90

Stephens

2

7/w

60

4

7/w

60

0.403

0.842

264

165

120

Ramapo

2

7/w

60

2

7/w

60

0.403

0.874

294

165

120

Brenau

1/0

19/w

80

2

7/w

60

0.522

1.064

408

215

160

Bergen

1/0

19/w

80

1/0

19/w

80

0.522

1.133

465

215

160

Converse

2/0

19/w

80

1

19/w

80

0.566

1.174

502

245

160

Hunter

2/0

19/w

80

2/0

19/w

80

0.566

1.228

560

245

180

Hollins

3/0

19/w

80

1/0

19/w

80

0.616

1.276

606

280

205

Rockland

3/0

19/w

80

3/0

19/w

80

0.616

1.336

678

280

205

Sweetbriar

4/0

19/w

80

2/0

19/w

80

0.672

1.389

739

315

240

Monmouth

4/0

19/w

80

4/0

19/w

80

0.672

1.457

828

315

240

Pratt

250

37/w

95

3/0

19/w

80

0.748

1.538

893

345

265

Wesleyan

350

37/w

95

4/0

19/w

80

0.851

1.736

1166

415

320

Holyoke

500

37/w

95

300

37/w

95

0.979

2.008

1607

495

395

Rider

500

37/w

95

350

37/w

95

0.979

2.035

1663

495

395

Fairfield

750

61/w

110

500

37/w

95

1.188

2.086

2304

615

525

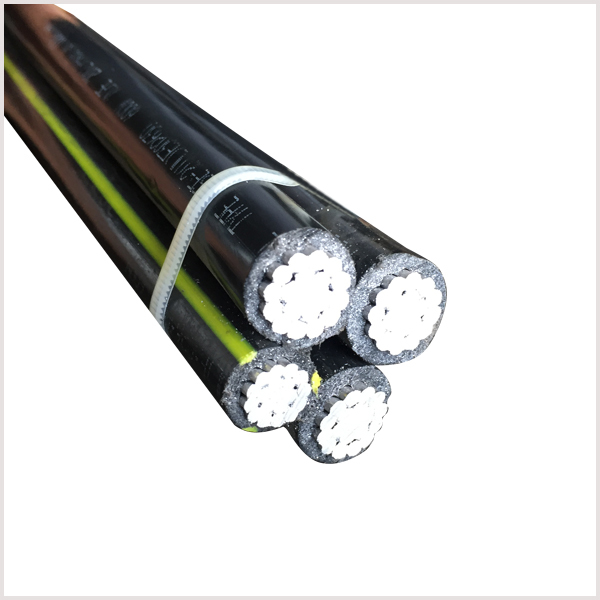

Quadruplex Conductor 600V Secondary                    Type URD Cable Aluminum Conductor

Code name

Phase Conductor

Neutral

cable diameter

Weight
Per 1000ft

Ampacity

Size

Stranding

Insulation
Thickness

Size

Stranding

Insulation
Thickness

single
phase

overall

Direct
Burial

In Duct

AWG

mils

AWG

mils

inches

Lbs

Amps

Tulsa

4

7

60

4

4

60

0.345

0.833

258

119

85

Dyke

2

7

60

4

4

60

0.403

0.938

346

153

115

Wittenberg

2

7

60

2

2

60

0.403

0.973

375

153

115

Notre Dame

1/0

19

80

2

2

60

0.522

1.188

541

198

150

Purdue

1/0

19

80

1/0

1/0

80

0.522

1.26

596

198

150

Syracuse

2/0

19

80

1

1

80

0.566

1.316

664

225

170

Lafayette

2/0

19

80

2/0

2/0

80

0.566

1.367

720

225

170

Swarthmore

3/0

19

80

1/0

1/0

80

0.616

1.43

805

250

195

Davidson

3/0

19

80

3/0

3/0

80

0.616

1.487

874

250

195

Wake Forest

4/0

19

80

2/0

2/0

80

0.672

1.56

979

290

225

Earlham

4/0

19

80

4/0

4/0

80

0.672

1.623

1066

290

225

Slippery Rock

350

37

95

4/0

4/0

80

0.851

1.945

1544

385

305

Wofford

500

37

95

350

350

95

0.851

2.348

2174

467

420

Windham

750

61

110

500

500

95

0.979

2.85

2542

615

492
